JSON Form Builder and Form
Library for Material UI

Add the SurveyJS drag-and-drop form builder and renderer to your MUI application and create dynamic forms from JSON. The SurveyJS MUI theme adapter makes both components follow your application’s colors, typography, shapes, and color scheme.

View MUI Adapter Demo Read Integration Guide
  • MUI 7
  • React
  • JSON-based forms
  • Backend-agnostic

See the Material UI Adapter in Action

Compare the same form built with SurveyJS and native MUI components to see how SurveyJS follows the active MUI theme.

Read Integration Guide

How SurveyJS Themes Work

Components keep the same markup and CSS rules. Themes change the variable values those rules consume.

1

SurveyJS Component CSS

.sd-btn { background: var(--sjs2-color-bg-brand-primary); }
2

Design Tokens (--sjs2-*)

--sjs2-color-bg-brand-primary
3

Theme Values

--sjs2-color-bg-brand-primary: #198394
4

Rendered Components

Button

How the Material UI Adapter Remaps
SurveyJS Tokens

The adapter does not modify MUI or replace SurveyJS components. It makes SurveyJS variables resolve to host values.

Load the adapter after the SurveyJS base stylesheet. Its token mappings override the baseline SurveyJS theme values and connect them to the active MUI variables.

1

MUI Host Application

CSS variables generated from the active MUI theme:

  • --mui-palette-primary-main: #1976d2
  • --mui-palette-text-primary: rgba(0,0,0,0.87);
  • --mui-palette-divider: rgba(0,0,0,0.12);
2

mui.min.css

Example token mappings:

  • --sjs2-color-bg-brand-primary: var(--mui-palette-primary-main);
  • --sjs2-color-fg-basic-primary: var(--mui-palette-text-primary);
  • --sjs2-color-border-basic-secondary: var(--mui-palette-divider);
3

SurveyJS Components

Consume the values:

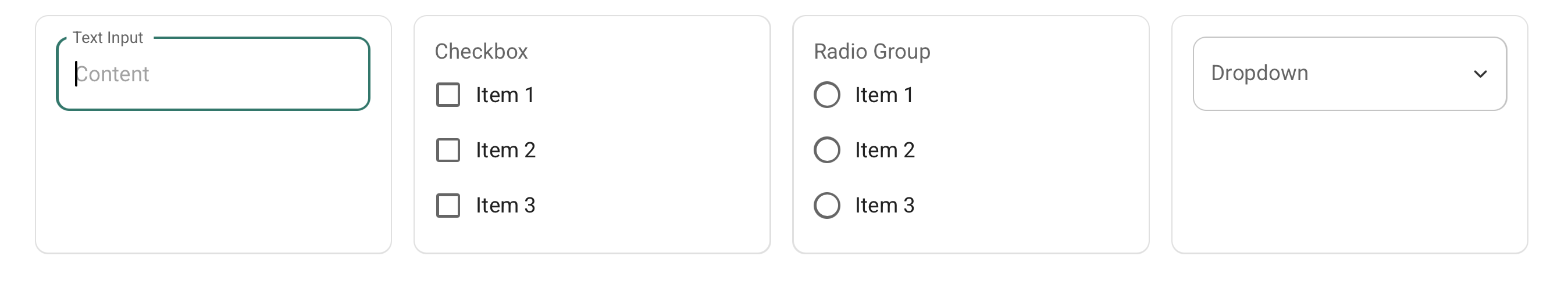

Text input, checkbox, radio group, and dropdown rendered by SurveyJS with Material UI token values

When Material UI Variables Change,
SurveyJS Follows

When MUI changes the values of its CSS variables, the SurveyJS tokens that reference them resolve to the new values automatically. You do not need to rebuild the survey model or apply a separate SurveyJS color theme.

Light Mode

1

MUI Light

  • --mui-palette-primary-main: #1976d2;
  • --mui-palette-background-default: #ffffff;
  • --mui-shape-borderRadius: 4px
2

mui.min.css

Adapter mapping.

  • --sjs2-color-bg-brand-primary: var(--mui-palette-primary-main);
  • --sjs2-color-bg-basic-primary: var(--mui-palette-background-default);
  • --sjs2-radius-form: var(--mui-shape-borderRadius);
3

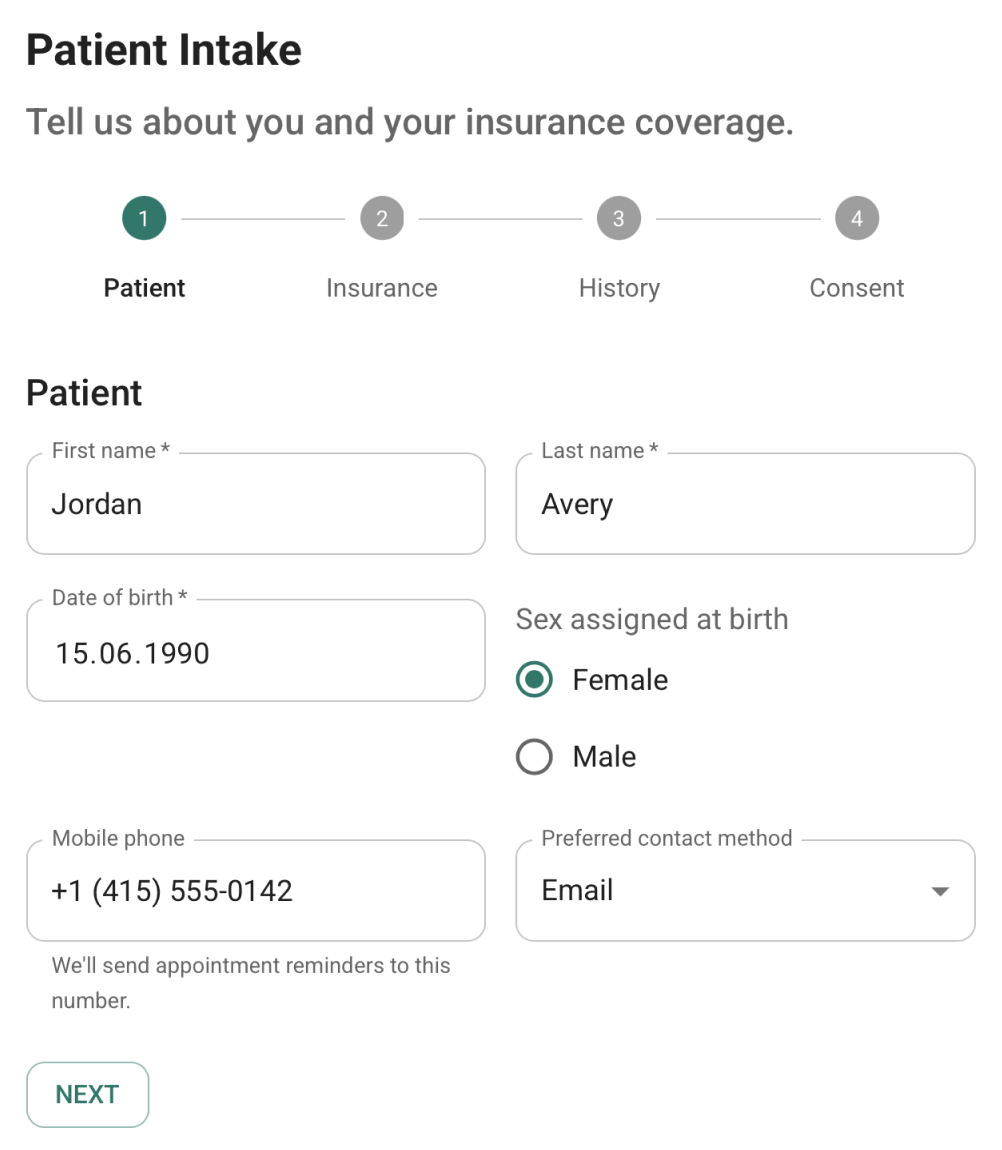

SurveyJS form rendered with Material UI light mode variables

Dark Mode

1

MUI Dark

  • --mui-palette-primary-main: #90caf9;
  • --mui-palette-background-default: #121212;
  • --mui-shape-borderRadius: 4px
2

mui.min.css

Adapter mapping.

  • --sjs2-color-bg-brand-primary: var(--mui-palette-primary-main);
  • --sjs2-color-bg-basic-primary: var(--mui-palette-background-default);
  • --sjs2-radius-form: var(--mui-shape-borderRadius);
3

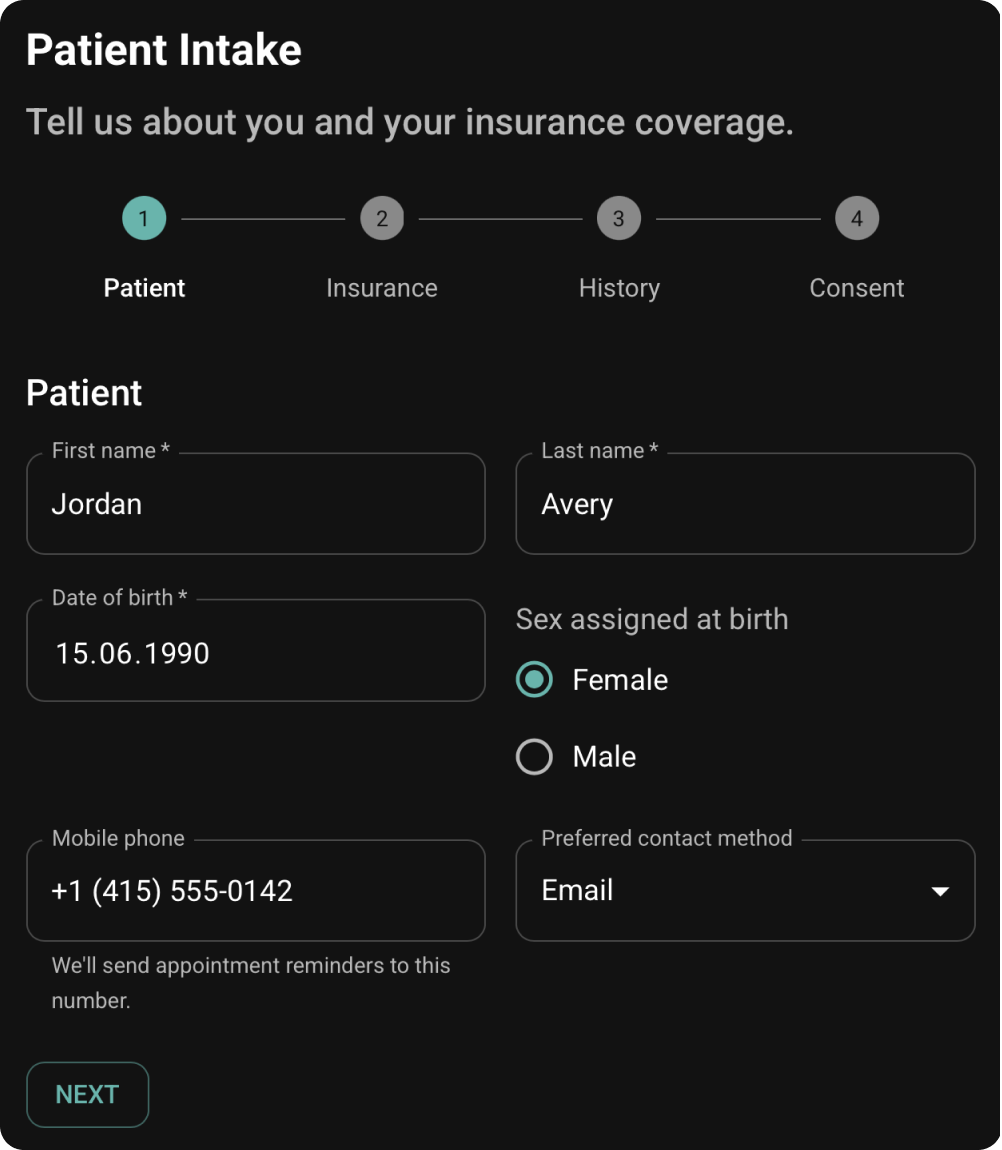

SurveyJS form rendered with Material UI dark mode variables

Connect SurveyJS to Your Material UI Theme

Enable MUI CSS variables, provide the theme, and load the SurveyJS adapter after the base stylesheet.

1

Enable MUI CSS theme variables

The adapter reads values exposed as --mui-* custom properties.

import { createTheme } from "@mui/material/styles";

export const theme = createTheme({
  cssVariables: {
    colorSchemeSelector: "class"
  },
  colorSchemes: {
    light: true,
    dark: true
  },
  shape: {
    borderRadius: 10
  },
  typography: {
    fontFamily:
      "Roboto, system-ui, -apple-system, Segoe UI, sans-serif"
  }
});
2

Provide the MUI theme

Render SurveyJS inside the same ThemeProvider as the rest of your application.

import CssBaseline from "@mui/material/CssBaseline";
import { ThemeProvider } from "@mui/material/styles";

<ThemeProvider theme={theme} defaultMode="light">
  <CssBaseline />
  <App />
</ThemeProvider>
3

Load the adapter after SurveyJS base CSS

Later declarations remap SurveyJS tokens to the active MUI variables.

// For Form Library:
import "survey-core/survey-core.min.css";
import "survey-core/themes/adapters/mui.min.css";

// For Survey Creator:
import "survey-core/survey-core.min.css";
import "survey-creator-core/survey-creator-core.min.css";
import "survey-core/themes/adapters/mui.min.css";
Survey Creator and Form Library use the same SurveyJS design-token system. A separate Creator adapter is not required.
View MUI Adapter Demo Read Integration Guide

What the Adapter can Match Automatically

The adapter maps available MUI variables and supplies MUI-compatible styles where SurveyJS has no direct MUI counterpart.

MUI theme area What SurveyJS can inherit
Palette Primary, background, surface, text, border, error, and state colors
Color schemes Light and dark values exposed by the active MUI scheme
Typography Mapped font family and MUI-compatible font sizes, weights, and line heights
Shape Mapped border-radius values
Elevation Mapped shadow values
Component states Mapped hover, focus, disabled, and error styling

Not Every MUI Decision Lives in the
Theme

The adapter can read MUI CSS variables, but it cannot infer styling and layout decisions defined through MUI component composition, including sx props, Box, Stack, Grid, responsive breakpoints, custom variants, or proprietary components.

Application decision Why the adapter cannot infer it What to do
Box padding It is local to that component instance Override the corresponding SurveyJS layout token
Stack spacing It defines spacing between components in that particular layout Map the spacing to SurveyJS vertical or horizontal gap tokens
Responsive sx values They are application-level breakpoint rules Add responsive SurveyJS overrides
Custom components and variants They may have no standard MUI equivalent Add token or targeted selector overrides
Also review Grid arrangements, Container widths, styled() rules, custom wrappers, proprietary steppers, internal density rules, and component defaults that are not exported as CSS variables.
Explore Overrides on GitHub

Map MUI Composition to SurveyJS
Layout Tokens

The host form uses local Box and Stack props. The override stylesheet mirrors those exact layout choices.

Host application

<Box sx={{ p: 2 }}>
  <Stack spacing={3}>
    <TextField label="Full name" />

    <Stack direction="row" spacing={2}>
      <TextField label="Department" />
      <TextField label="Role" />
    </Stack>
  </Stack>

  <Stack
    direction="row"
    spacing={1}
    sx={{ mt: 3 }}
  >
    <Button variant="contained">
      Continue
    </Button>
  </Stack>
</Box>

SurveyJS override

.sjs-theme-overrides {
  /* Box p: 2 → 16px */
  --sjs2-layout-component-survey-header-padding-horizontal: 16px;

  --sjs2-layout-component-survey-box-padding-bottom: 16px;

  /* Stack spacing={3} → 24px */
  --sjs2-layout-component-page-content-area-gap-vertical: 24px;

  /* Row spacing={2} → 16px */
  --sjs2-layout-component-page-content-area-gap-horizontal: 16px;

  /* Footer spacing={1} → 8px */
  --sjs2-layout-component-survey-footer-action-group-gap: 8px;
}
MUI’s default spacing unit is 8px. In this example, p: 2, spacing={3}, spacing={2}, and spacing={1} resolve to 16px, 24px, 16px, and 8px. These values come from the application’s component composition, so the adapter cannot map them automatically.

Load Styles from General to Application-Specific

Your override stylesheet comes last, so its declarations win through normal CSS source order.

  1. 1

    survey-core.min.css

    Base SurveyJS component styles

  2. 2

    survey-creator-core.min.css

    Creator styles, when Creator is used

  3. 3

    mui.min.css

    Maps SurveyJS tokens to MUI variables

  4. 4

    survey-overrides/mui.css

    App-specific layout and component decisions

Optional extension pointsurvey-overrides/<palette-id>.cssfor genuine palette-specific exceptions.

Use a Selector Only for Behavior
Without a Token

Prefer --sjs2-* token overrides. They preserve SurveyJS’s styling architecture and remain easier to maintain.

Use a token first

Use a SurveyJS class selector only when the required application-specific behavior has no token equivalent.

Keep selectors narrow and document which host-app decision they reproduce.

.sd-progress-buttons {
  padding: 0 16px 16px;
}

.sd-root-modern--mobile
  .sd-progress-buttons { padding-inline: 0; }
View MUI Adapter Demo Read Integration Guide

When the Material UI Adapter
is a Good Fit

The MUI adapter maps standard MUI theme variables and reproduces the appearance of supported stock MUI components. Application-specific layout rules, custom variants, and proprietary components require explicit overrides. As an application moves further away from standard MUI conventions, the adapter can automate less.

Your MUI setup Expected result
Standard MUI theme with CSS variables enabled Works directly
Customized palette, typography, shape, or schemes exposed as --mui-* variables Usually automatic
Layout defined through Box, Stack, Grid, or responsive sx Add small overrides
Custom variants or styled() components Review and map the differences
Proprietary design system built on top of MUI Use the SurveyJS styling skill and MCP server to help your AI coding agent analyze the app's design tokens and generate a CSS token mapping
The adapter follows MUI’s standard theme-variable contract. It cannot infer proprietary wrappers, application layout rules, or components that have no standard MUI equivalent.

Render MUI-Styled Forms from JSON

Create dynamic forms with validation, conditional logic, calculated values, multi-page navigation, and repeatable sections. SurveyJS renders the schema while the adapter aligns the form with your MUI theme.

import { Model } from "survey-core";
import { Survey } from "survey-react-ui";
import CssBaseline from "@mui/material/CssBaseline";
import { ThemeProvider, createTheme } from "@mui/material/styles";
import "survey-core/survey-core.css";
import "survey-core/themes/adapters/mui.min.css";

const theme = createTheme({
  cssVariables: true
});

const surveyJson = {
  elements: [{
    name: "FirstName",
    title: "Enter your first name:",
    type: "text"
  }, {
    name: "LastName",
    title: "Enter your last name:",
    type: "text"
  }, {
    name: "PreferredContactMethod",
    title: "Preferred contact method",
    type: "radiogroup",
    choices: ["Email", "Phone"]
  }]
};

export function SurveyComponent() {
  const survey = new Model(surveyJson);
  return (
    <ThemeProvider theme={theme}>
      <CssBaseline />
      <Survey model={survey} />
    </ThemeProvider>
  );
}
View MUI Adapter Demo Read Integration Guide

Conditional Logic

Show, hide, enable, or require fields based on answers.

Multi-Page Forms

Break complex forms into steps with progress.

Dynamic Panels

Add, remove, and reorder repeatable groups.

Validation

Built-in validation and custom rules with clear error messages.

Localization

Translate content and validation into any language.

Read-Only Modes

Display submitted data or lock sections when needed.

Add a Drag-and-Drop Form Builder
to Your MUI Application

Let business users create and update forms visually while your application retains control of schemas, responses, authentication, permissions, and storage.

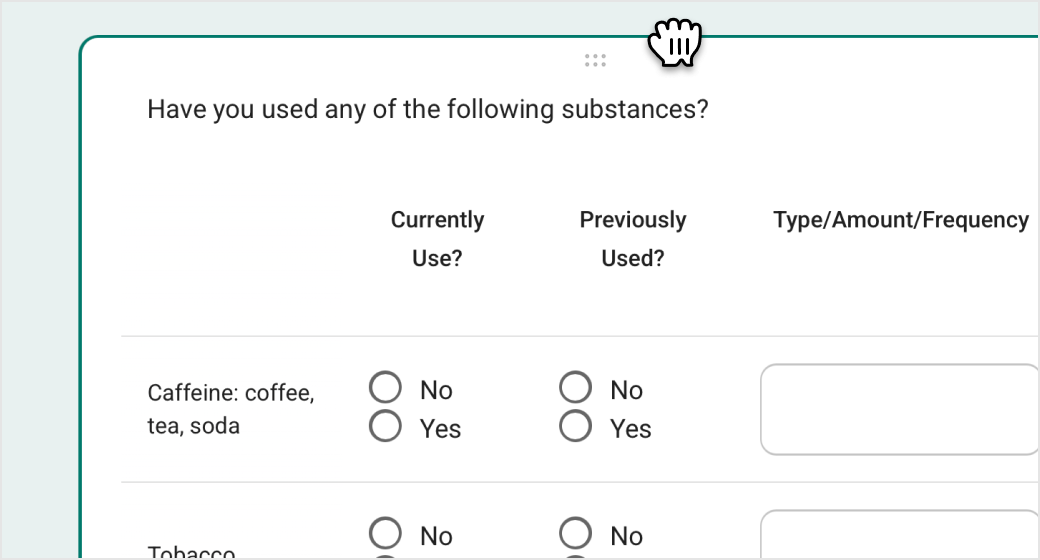

Survey Creator embedded in a Material UI application
  • Embed Survey Creator
  • Save JSON schema to your backend
  • Use Form Library to render the schema
  • Keep authentication and permissions in your app

Fits Your Application and Backend

SurveyJS runs as client-side libraries in the browser. Schemas and responses are plain JSON you send to your own API and store in your own database.

Browser

Material UI

Themes + Components

+
SurveyJS

Survey Creator (builder) + Form Library (renderer)

JSON

Your API

Your Database

  • Client-side libraries

    Run entirely in the browser.

  • Store schemas and responses anywhere

    Use your existing API and database.

  • No required hosted form service

    Keep control, privacy, and compliance.

View MUI Adapter Demo Read Integration Guide

Frequently Asked Questions

Can I use SurveyJS with Material UI?

Yes. Add SurveyJS Form Library or Survey Creator to your MUI application and import the SurveyJS MUI theme adapter. The adapter makes SurveyJS components use values from your active MUI theme so that they visually match the rest of the application.

Does SurveyJS render MUI components?

No. SurveyJS renders its own components and does not replace them with MUI components. The adapter maps SurveyJS design tokens to MUI CSS variables so that SurveyJS components adopt the corresponding MUI colors, typography, shapes, and other theme values.

Does the adapter work with MUI 7?

Yes. The SurveyJS MUI theme adapter works with MUI 7.

Do I need to enable MUI CSS theme variables?

Yes. The adapter reads MUI theme values from --mui-* CSS custom properties, so your MUI theme must be configured to generate CSS variables. SurveyJS components must also be rendered inside the corresponding MUI ThemeProvider.

Can I use a customized MUI theme?

Yes, provided that your customized values are exposed as MUI CSS variables and have corresponding mappings in the adapter. Standard customizations to the palette, typography, shape, elevation, and color schemes can therefore be inherited automatically. Application-specific layout and component rules may require additional CSS.

Does it support custom MUI component variants?

Custom variants are not matched automatically unless their styling is exposed through CSS variables that the adapter can use. If a variant is implemented through component configuration, styled(), local selectors, or proprietary components, add an application-specific SurveyJS token or selector override.

What happens to styles defined with sx?

Styles defined with sx apply to the MUI component on which they are declared. The adapter cannot inspect those declarations or infer layout decisions such as p: 2, spacing={3}, responsive values, or breakpoint-specific rules. To reproduce those decisions in SurveyJS, map the resolved values to the corresponding --sjs2-* layout tokens in an application-owned stylesheet.

Do I need custom CSS?

Not when you use standard MUI theme values that are already covered by the adapter. You may need a small override stylesheet if your application defines layout through Box, Stack, Grid, responsive sx rules, custom variants, or proprietary components.

Prefer overriding --sjs2-* design tokens. Use SurveyJS class selectors only when the required behavior has no corresponding token.

Does Survey Creator generate MUI JSX?

No. Survey Creator produces and edits a JSON form schema, not MUI JSX or HTML markup. SurveyJS Form Library renders that schema at runtime, while the MUI adapter makes the rendered interface visually align with your MUI application.

Can Form Library and Survey Creator use the same MUI adapter?

Yes. Form Library and Survey Creator consume the same SurveyJS design-token system, so the same MUI adapter can style both products. Survey Creator does not require a separate MUI adapter.

Add Form Building to Your Material UI
Application

Install SurveyJS, import the MUI adapter, and build dynamic forms that follow your application’s MUI theme.

View MUI Adapter Demo Read Integration Guide

Your cookie settings

We use cookies to make your browsing experience more convenient and personal. Some cookies are essential, while others help us analyse traffic. Your personal data and cookies may be used for ad personalization. By clicking “Accept All”, you consent to the use of all cookies as described in our Terms of Use and Privacy Statement. You can manage your preferences in “Cookie settings.”

Accept All
Cookie Settings

Your renewal subscription expires soon.

Since the license is perpetual, you will still have permanent access to the product versions released within the first 12 month of the original purchase date.

If you wish to continue receiving technical support from our Help Desk specialists and maintain access to the latest product updates, make sure to renew your subscription by clicking the "Renew" button below.

Renew
Later

Your renewal subscription has expired.

Since the license is perpetual, you will still have permanent access to the product versions released within the first 12 month of the original purchase date.

If you wish to continue receiving technical support from our Help Desk specialists and maintain access to the latest product updates, make sure to renew your subscription by clicking the "Renew" button below.

Renew
Later
